Electric control

Description

Automatic window control systems can be used with windows that are already installed in the roof. Depending on the power supply option, the following solutions are available:
electric automatic window control – where electrical power is available,

Elecric control:

Modèle	Specification	Picture
ASE230 electric chain actuator	Output voltage 230V. Extension control of 24 and 36 cm. Max. power consumption of 2W. Absorbed current 1.30 A. No load speed 8 mm/s IP protection degree: IP30. Double chain made of steel.
ASE 230 control centre	Output voltage 230V. Max. power consumption of 2W. Absorbed current 1.30 A. 1 control output for actuator. 1 actuator connection. Connection of the ADD rain detector. Remote control (AP4 remote). Dimensions: 87x53x32 mm.
Rain detector ADD	Triggers automatic closing of the window when the sensor detects rain. The sensor will not react to fog, ice, dew or moisture
Wall switch AWN	–

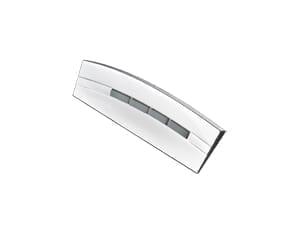

Remote AP4	Remote control (AP4).

Ordering windows accessories:
1. Select the product.
2. Read the number on the rating plate.
3. Fill in the form.
4. If necessary, we will contact you for further details.

In case of any doubts, please contact our advisor or send a message at: export@okpol.com.
