Description

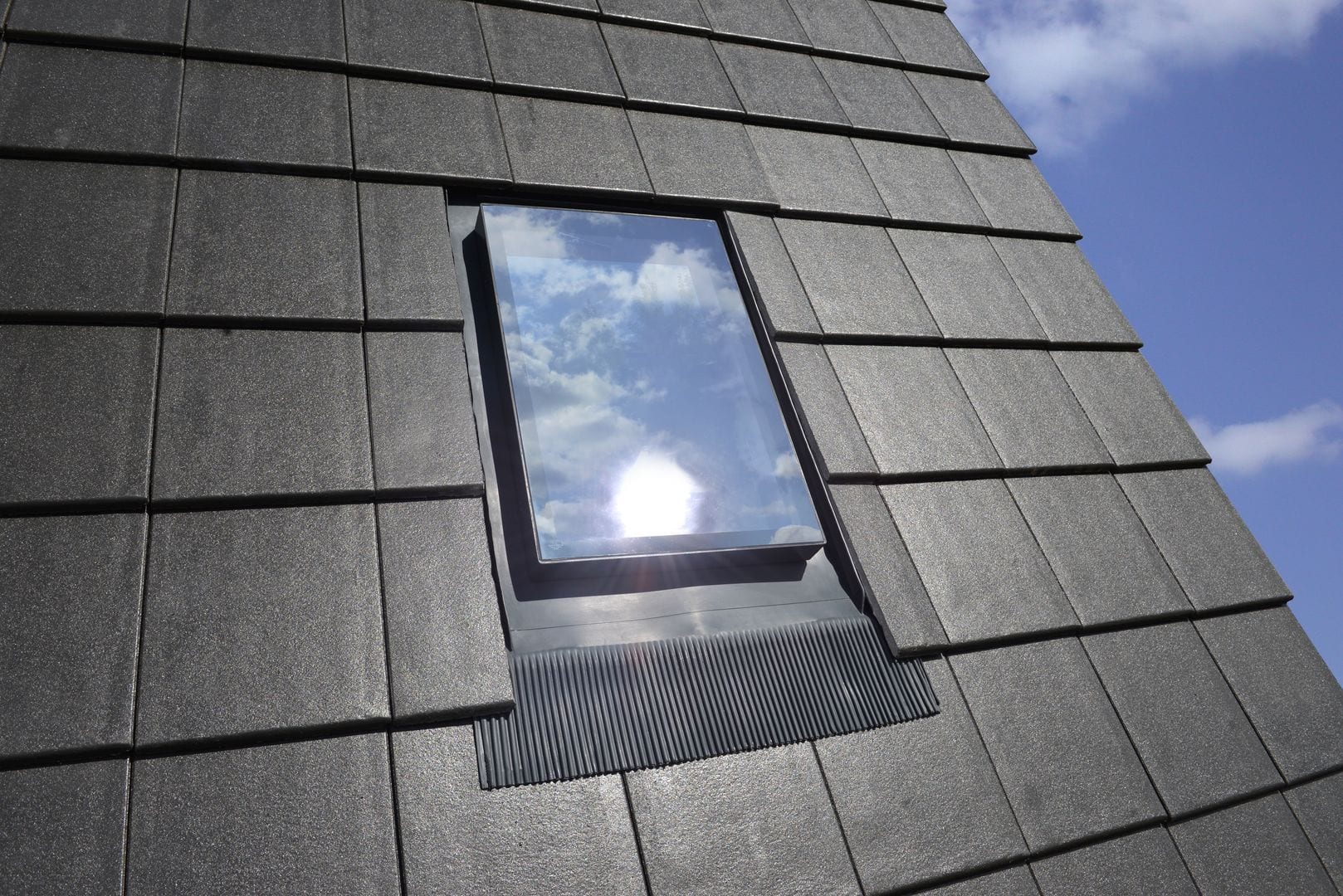

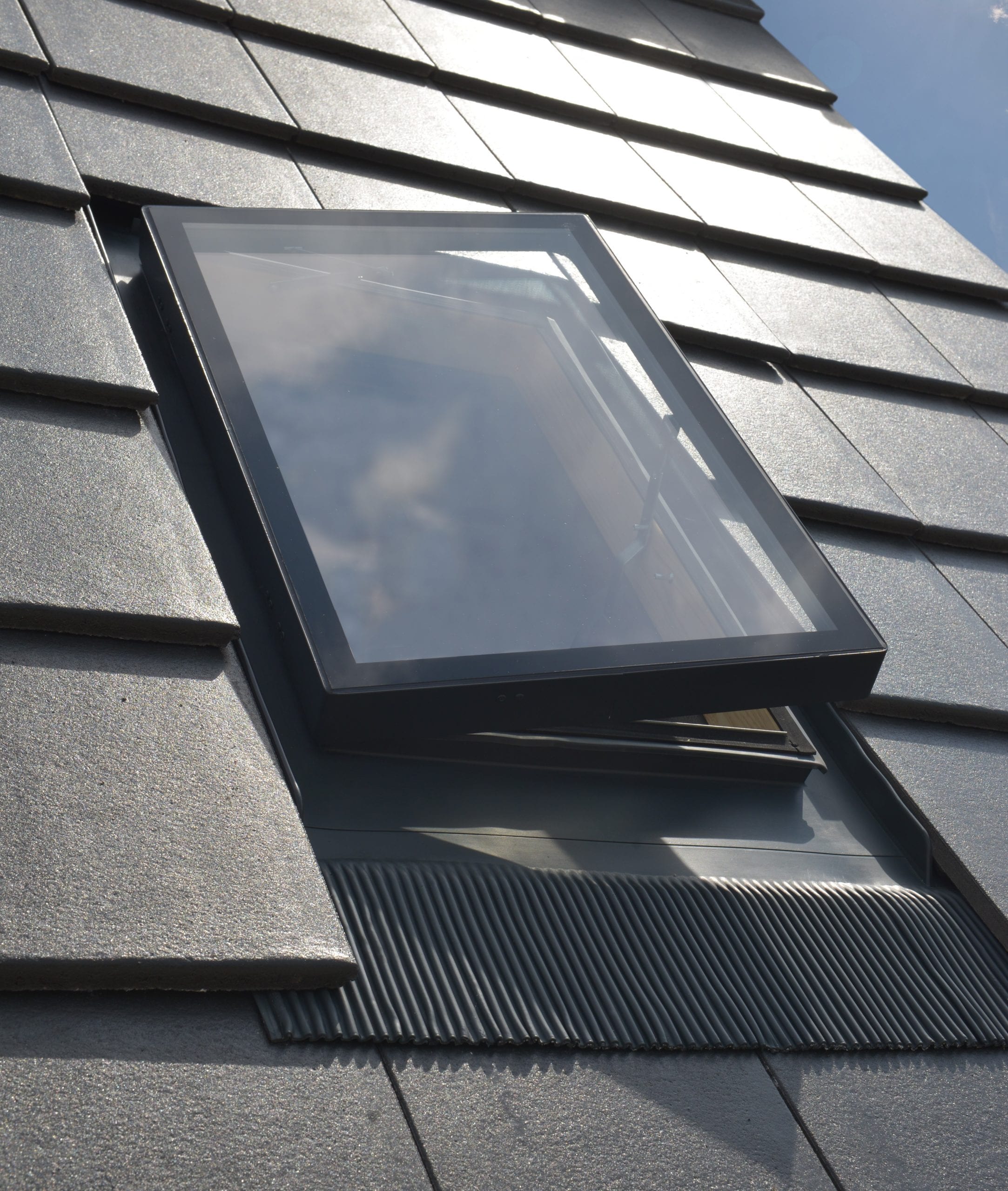

WVR-.-254x300 WVR V8 - triple glazingRoof wooden skylight, triple glazing – with integrated flashing EPDM, for non residental and unheated rooms.

// Aluminium frame

// EPDM flashing with colour RAL 7016

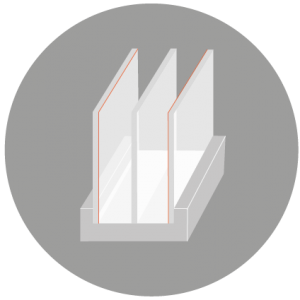

N22-KPVC-07-300x300 WVR V8 - triple glazing glazing unit
external toughened pane
(safety during hail) inner laminated pane  P2A
STOLARKA_DREWNO_8 WVR V8 - triple glazing joinery
impregnated pine wood
KO%C5%81NIERZ%20AKP WVR V8 - triple glazing improves anti-humidity insulation thanks to the tighter connection with existing roofing felt
integrated flashing EPDM, aluminium frame, EPDM flashing in colour  RAL 7016
ZMIENNY%20KIER.OTW.SKRZ WVR V8 - triple glazing interchangeable sash opening direction. From right to the left side.
even after installation of the skylight.
BUTYL%20NA%20WEW.%20POW.%20FAR. WVR V8 - triple glazing ensures exact fit of the apron
integrated EPDM flashing with lead apron
RYNNA%20ODWADNIAJ%C4%84CA WVR V8 - triple glazing drainage of condensate from the vapor barrier membrane
the drainage gutter
WSPORNIK%20DACH%C3%93WKI WVR V8 - triple glazing correct and aesthetic assembly of the roof
tile support wedge
OGRANICZNIK%20ZAMKNI%C4%98CIA%20SKRZYD%C5%81A WVR V8 - triple glazing at full opening 90
prevent the sash from slamming
KLIN%20USZCZELNIAJ%C4%84CY_9 WVR V8 - triple glazing seals the side joints of skylight with the roof
sealing wedges EPDM
UCHWYT%20OTWARCIA WVR V8 - triple glazing 3-stepped  air access adjustment
the handle for opening sash

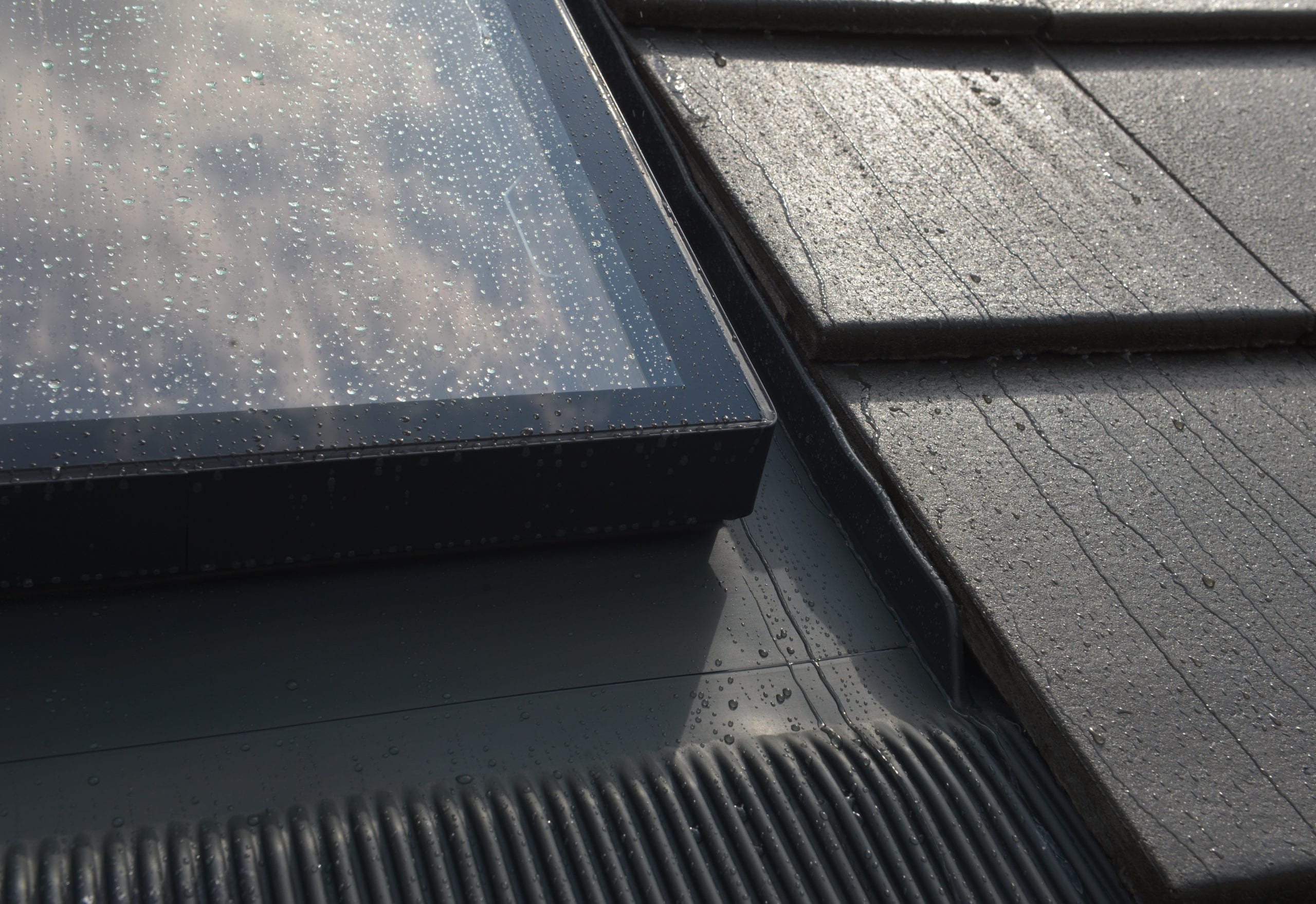

KO%C5%81NIERZ%20USZCZELNIAJACY_7 WVR V8 - triple glazing tight installation on the roof tile
integrated flashing with EPDM
K%C4%84T%205-75_8 WVR V8 - triple glazing roof pitch
5-75








wyjscie-na-dach-e1413364017483 WVR V8 - triple glazing

Additional information

Glazing unit in window

Outer pane

Gas

Handle

handle locking the sash in 3 positions

Roof tile bracket

Yes

Opening stop

Yes

Chimney flashing

Yes

Integrated flashing

Yes

Sponge seals

Yes

Rain gutter

Yes
