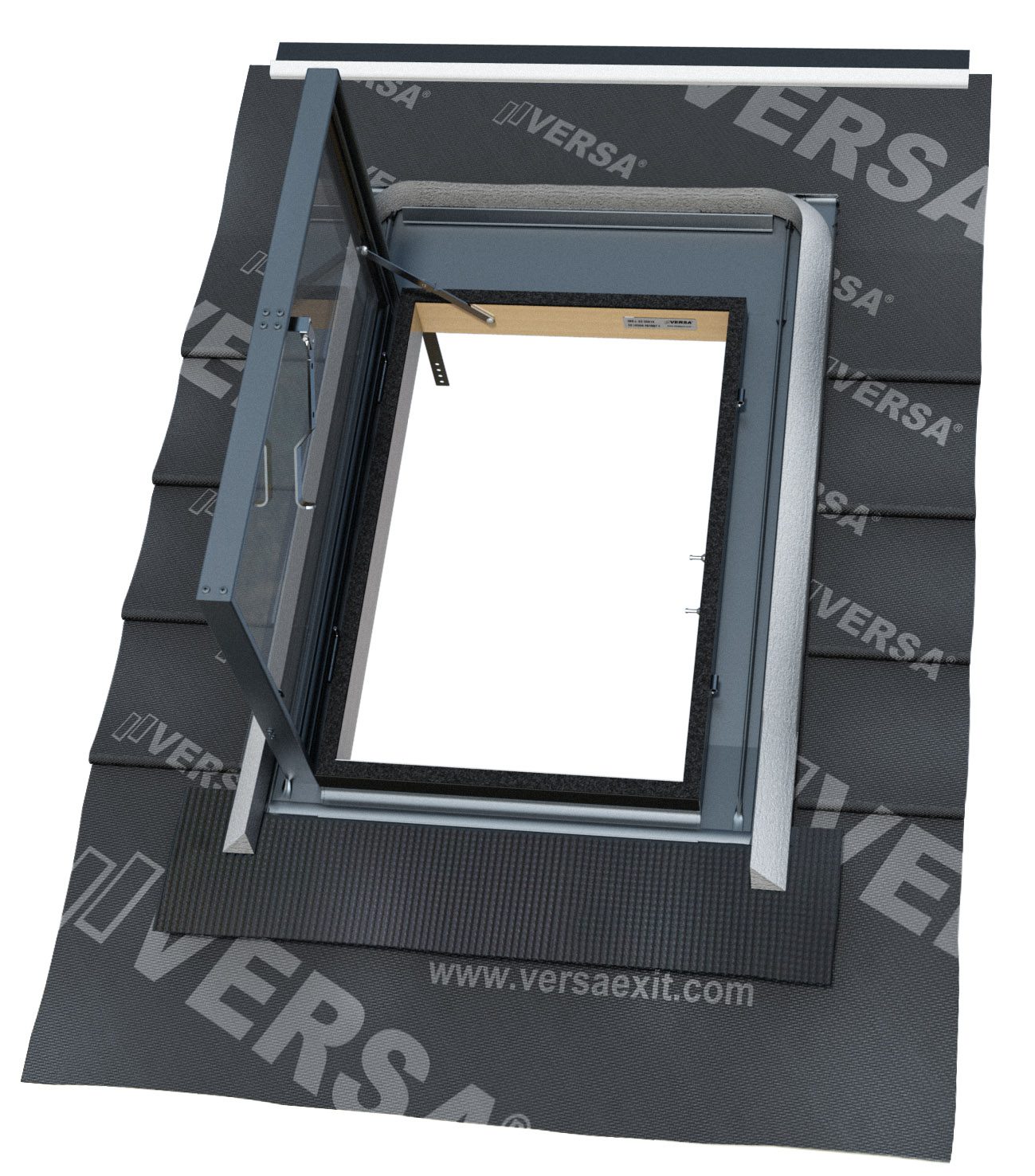

WVD+ 47×73

Guarantee
Product chart
Installation instruction
CE declaration Product catalogue

Description



szyba_hartowana_w_oknach WVD+ 47x73 glazing unit
toughened pane
(protection against hail)

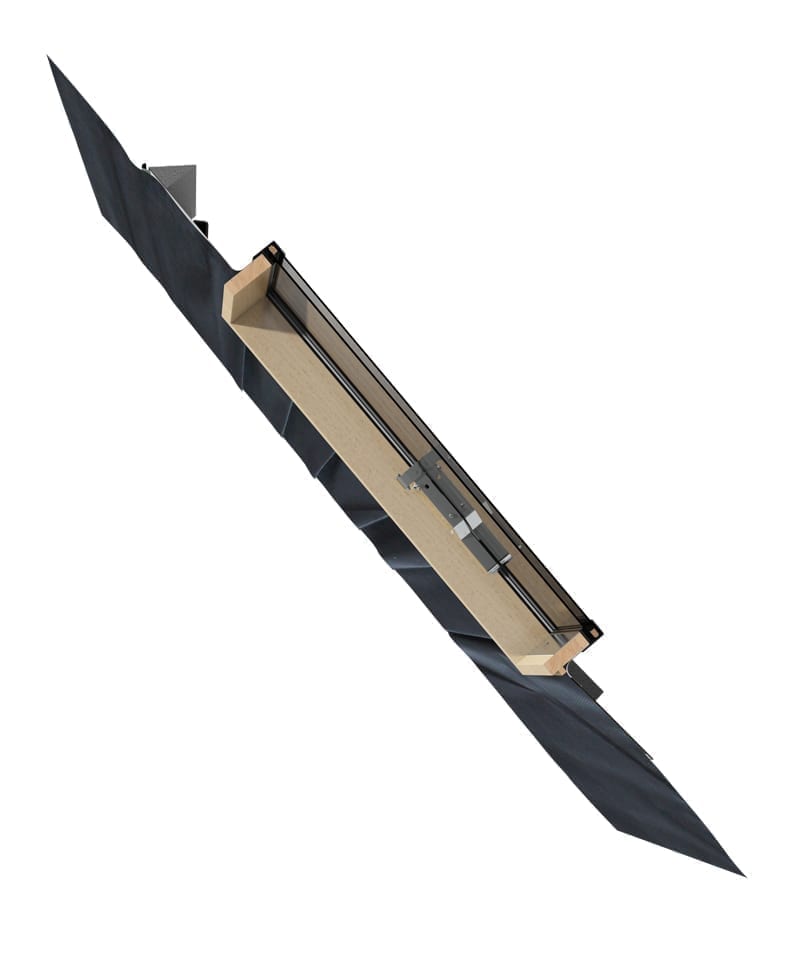

stolarka WVD+ 47x73 profile type
engineered pine wood
kołnierz-AKP WVD+ 47x73 increased damp proofing properties thanks to a tighter connection of the skylight with the membrane
integrated underfelt collar
otwieranie-LP WVD+ 47x73 enables the  sashes opening direction to be changed from left to right even after  installing the skylight
hinges
Butyl-w-fartuchu-ołowianym WVD+ 47x73 provides waterproof and  firm  connection with the roofing
lead apron with MDM
rynna-odwadn WVD+ 47x73 improves the isolation by draining the damp beyond  the skylights outline
rain gutter
wspornik-dachówki1 WVD+ 47x73 simplifies  instalation of the skylight into the roof
roof tile bracket
rozpórka WVD+ 47x73 prevents the sash form slamming
opening stop
klin-uszcz WVD+ 47x73 seals the side connetions of the skylight with the roof
sealing wedges
uchwyt WVD+ 47x73 3 position lock
casement
kołnierz-uszcz WVD+ 47x73 ensures waterproof installation into the roof
integrated integrated flashing
listwa-komin WVD+ 47x73 protects lower part of the frame during exit to the roof – wood protection
threshold
kąt-mont-15-65 WVD+ 47x73 roof pitch
15-65 degrees

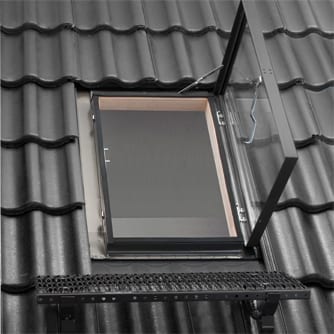

wyjscie-na-dach-e1413364017483 WVD+ 47x73

Additional information

Function window / skylight
Material
Glazing unit in window
Outer pane
Gas
Handle
Micro-ventilation
Roof pitch
Roof tile bracket
Opening stop
Chimney flashing
Integrated flashing
Sponge seals
Rain gutter
Lead apron
