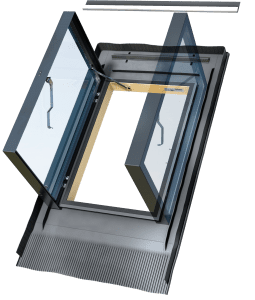

Get to know the VERSA RESET skylight
5o
The only one with possibility of installation in the roof pitch 5°
VERSA RESET WVR V8 skylight is a new version of popular Versa skylights improved by integrated EPDM flashing and 3-glazing unit with external toughened pane and internal laminated pane (anti-burglary unit).
Versa is a appreciated mark not only on polish market. These are the access skylights most ofen purchased by our domestic roofers. A customer who decides to buy the RESET line products decides to use a very technologically advanced solution.
It is a proposal that was created as a result of laboratory tests, expert opinions and care for safety, ecology and economy.
5o
Installation in 15 minutes
The window and skylight are installed extremely quickly - only in 15 minutes!
Installation of the RESET product line is a pleasure for the roofers. Tiles support wedge and corner brackets will ensure correct installation of window. Lower part of flashing - "Apron" is glued by butyl and that provides exact adhesion of flashing to the roofing material. The use of flashing is a very safe installation - material does not hurt hands, unlike aluminum flashing used so far to connect windows with the roof(the video showing installation of the window is available on OKPOL Youtube channel)Installation can be performed in wide range of roof pitch, compatibility with most types of roofs.
5o
Horizontal row with one type of flashing
Products can be installed in horizontal row using one type of flashing, in any number, with a gap of only 12 cm between the skylights.
5o
Extensive equipment of skylights
VERSA RESET WVR V8 is equipped with tile support wedge, the drainage gutter, sash closing limiter(at full opening 90 degree) the handle for opening the sash, the chimney sweep rail and brackets for quick installation in roofing material. EPDM flashing enables safe installation.Interchangeable sash opening direction - from right to left side, even after the installation.
WVR V8 RESET has dimension convenient for the user, made with impregnated pine wood, It's equipped with the drainage gutter, the handle for opening the sash and sash closing limiter.
The equipment include also the chimney sweep rail - effective protecting the woodwork when exiting through the skylight and pressing the lower part of the frame with footwear. The sash can be installed on the right or left side - it is decideb by the user at any time - also after installation.
INTERCHANGEABLE
SASH OPENING DIRECTION
from right to left side
THE INTEGRATED FLASHING
Made from EPDM
ALUMINUM TAPE IN THE LOWER PART OF FLASHING
ensure fit to the roofing material
TILE SUPPORT
WEDGE
Correct and aesthetic assembly of the roof
THE DRAINAGE
GUTTER
Drainage of condensate
from the vapor barrier membrane
BUTYL ON THE APRON'S INNER SURFACE
ensures exact fit
to the apron
SASH CLOSING LIMITER
at full opening 90 degree
THE HANDLE FOR
OPENING THE SASH
3-steppet air
access adjustments
THE CHIMNEY
SWEEP RAIL
Metal shield protects bottom part of the frame
bottom part of the frame
GUARANTEE
5 year
gurarantee
for skylight
